Larger Diameter Spiral Welded Pipes
| Product Range | Large Diameter Spiral Welded Pipes |
|---|---|
| OD | 20" to 130" (500 MM to 3250 MM) |
| Thickness | 5.00 MM to 25.40 MM |
| Length | 6 Mtrs. to 12.70 Mtrs. |
| Specification | IS: 3589, Fe. 330/410 & API 5L Gr. upto X80 PSL2 |
Weight in KGS per Running Mtrs (As per IS :3589, Gr. Fe.410)
| Thickness (MM) | 22" | 24" | 26" | 28" | 30" | 32" | 34" | 36" | 38" | 40" | 42" | 44" | 46" | 48" | 50" | 52" | 54" | 56" | 58" | 60" | 62" | 64" | 66" | 68" | 70" | 72" | 74" | 76" | 78" | 80" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 558.8 | 609.6 | 660.4 | 711.2 | 762 | 812.8 | 863.6 | 914.4 | 965.2 | 1016 | 1066.8 | 1117.6 | 1168.4 | 1219.2 | 1270 | 1320.8 | 1371.6 | 1422.4 | 1473.2 | 1524 | 1574.8 | 1625.6 | 1676.4 | 1727.2 | 1778 | 1828.8 | 1879.6 | 1930.4 | 1981.2 | 2032 | |
| 5 | 68.29 | 74.55 | 80.82 | 87.08 | 93.34 | 99.61 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 5.5 | 75.05 | 81.94 | 88.83 | 95.72 | 102.61 | 109.5 | 116.39 | 123.28 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 6 | 81.8 | 89.31 | 96.83 | 104.35 | 111.86 | 119.38 | 126.9 | 134.42 | 141.93 | 149.45 | 156.97 | 164.48 | 172 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 6.5 | 88.53 | 96.68 | 104.82 | 112.96 | 121.11 | 129.25 | 137.39 | 145.54 | 153.68 | 161.82 | 169.97 | 178.11 | 186.25 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 7 | 95.26 | 104.03 | 112.8 | 121.57 | 130.34 | 139.11 | 147.88 | 156.64 | 165.41 | 174.18 | 182.95 | 191.72 | 200.49 | 209.26 | 218.03 | 226.8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 7.5 | 101.97 | 111.37 | 120.76 | 130.16 | 139.55 | 148.95 | 158.35 | 167.74 | 177.14 | 186.53 | 195.93 | 205.33 | 214.72 | 224.12 | 233.51 | 242.91 | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
| 8 | 108.67 | 118.69 | 128.71 | 138.74 | 148.76 | 158.78 | 168.6 | 178.83 | 188.85 | 198.87 | 208.89 | 218.92 | 228.94 | 238.96 | 248.98 | 259 | 269.03 | 279.05 | 289.07 | 299.09 | 309.12 | 319.14 | 329.16 | 339.18 | 349.21 | 359.23 | 369.25 | 379.27 | 389.3 | 399.32 |
| 8.5 | 115.36 | 126 | 136.65 | 147.3 | 157.95 | 168.6 | 179.25 | 189.9 | 200.55 | 211.19 | 221.84 | 232.49 | 243.14 | 253.79 | 264.44 | 275.09 | 285.74 | 296.39 | 307.03 | 317.68 | 328.33 | 338.98 | 349.63 | 360.28 | 370.93 | 381.58 | 392.23 | 402.87 | 413.52 | 424.17 |
| 9 | 122.03 | 133.31 | 144.58 | 155.86 | 167.13 | 178.41 | 189.68 | 200.96 | 212.23 | 223.51 | 234.78 | 246.06 | 257.33 | 268.61 | 279.88 | 291.16 | 302.43 | 313.71 | 324.98 | 336.26 | 347.53 | 358.81 | 370.09 | 381.36 | 392.64 | 403.91 | 415.19 | 426.46 | 437.74 | 449.01 |
| 9.5 | 128.69 | 140.59 | 152.5 | 164.4 | 176.3 | 188.2 | 200.1 | 212 | 223.91 | 235.81 | 247.71 | 259.61 | 271.51 | 283.41 | 295.32 | 307.22 | 319.12 | 331.02 | 342.92 | 354.82 | 366.73 | 378.63 | 390.53 | 402.43 | 414.33 | 426.23 | 438.13 | 450.04 | 461.94 | 473.84 |
| 10 | 135.34 | 147.87 | 160.4 | 172.93 | 185.45 | 197.98 | 210.51 | 223.04 | 235.57 | 248.09 | 260.62 | 273.15 | 285.68 | 298.21 | 310.73 | 323.26 | 335.79 | 348.32 | 360.85 | 373.38 | 385.9 | 398.43 | 410.96 | 423.49 | 436.02 | 448.54 | 461.07 | 473.6 | 486.13 | 498.66 |
| 10.5 | 141.98 | 155.13 | 168.29 | 181.44 | 194.6 | 207.75 | 220.91 | 234.06 | 247.22 | 260.37 | 273.52 | 286.68 | 299.83 | 312.99 | 326.14 | 339.3 | 352.45 | 365.61 | 378.76 | 391.91 | 405.07 | 418.22 | 431.38 | 444.53 | 457.69 | 470.84 | 484 | 497.19 | 510.3 | 523.46 |
| 11 | 148.61 | 162.39 | 176.17 | 189.95 | 203.73 | 217.51 | 231.29 | 245.07 | 258.85 | 272.63 | 286.41 | 300.19 | 313.98 | 327.76 | 341.54 | 355.32 | 369.1 | 382.88 | 396.66 | 410.44 | 424.22 | 438 | 451.78 | 465.56 | 479.35 | 493.13 | 506.91 | 520.69 | 534.47 | 548.25 |
| 11.5 | 155.22 | 169.63 | 184.03 | 198.44 | 212.85 | 227.25 | 241.66 | 256.07 | 270.48 | 284.88 | 299.29 | 313.7 | 328.11 | 342.51 | 356.92 | 371.33 | 385.73 | 400.14 | 414.55 | 428.96 | 443.36 | 457.77 | 472.18 | 486.58 | 500.99 | 515.4 | 529.81 | 544.21 | 558.62 | 573.03 |
| 12 | 161.82 | 176.85 | 191.89 | 206.92 | 221.95 | 236.99 | 252.02 | 267.05 | 282.09 | 297.12 | 312.16 | 327.19 | 342.22 | 357.26 | 372.29 | 387.32 | 402.36 | 417.39 | 432.42 | 447.46 | 462.49 | 477.53 | 492.56 | 507.59 | 522.63 | 537.66 | 552.69 | 567.73 | 582.76 | 597.79 |
| 12.5 | 168.41 | 184.07 | 199.73 | 215.39 | 231.05 | 246.71 | 262.37 | 278.03 | 293.69 | 309.35 | 325.01 | 340.67 | 356.33 | 371.99 | 387.65 | 403.31 | 418.97 | 434.63 | 450.29 | 465.95 | 481.61 | 497.27 | 512.93 | 528.59 | 544.25 | 559.91 | 575.57 | 591.23 | 606.89 | 622.55 |
| 13 | 174.98 | 191.27 | 207.56 | 223.84 | 240.13 | 256.42 | 272.7 | 288.99 | 305.27 | 321.56 | 337.85 | 354.13 | 370.42 | 386.71 | 402.99 | 419.28 | 435.57 | 451.85 | 468.14 | 484.43 | 500.71 | 517 | 533.29 | 549.57 | 565.86 | 582.14 | 598.43 | 614.72 | 631 | 647.29 |
| 13.5 | 181.55 | 198.46 | 215.37 | 232.29 | 249.2 | 266.11 | 283.02 | 299.94 | 316.85 | 333.76 | 350.68 | 367.59 | 384.5 | 401.41 | 418.33 | 435.24 | 452.15 | 469.07 | 485.98 | 502.89 | 519.8 | 536.72 | 553.63 | 570.54 | 587.46 | 604.37 | 621.28 | 638.19 | 655.11 | 672.02 |
| 14 | - | - | 223.18 | 240.72 | 258.26 | 275.79 | 293.33 | 310.87 | 328.41 | 345.95 | 363.49 | 381.03 | 398.57 | 416.11 | 433.65 | 451.19 | 468.73 | 486.27 | 503.8 | 521.34 | 538.88 | 556.42 | 573.96 | 591.5 | 609.04 | 626.58 | 644.12 | 661.66 | 679.2 | 696.74 |
| 14.5 | - | - | 230.97 | 249.13 | 267.3 | 285.47 | 303.63 | 321.8 | 339.96 | 358.13 | 376.29 | 394.46 | 412.63 | 430.79 | 448.96 | 467.12 | 485.29 | 503.45 | 521.62 | 539.78 | 557.95 | 576.12 | 594.28 | 612.45 | 630.61 | 648.78 | 666.94 | 685.11 | 703.28 | 721.44 |
| 15 | - | - | 238.75 | 257.54 | 276.33 | 295.12 | 313.92 | 332.71 | 351.5 | 370.29 | 389.08 | 407.88 | 426.67 | 445.46 | 464.25 | 483.04 | 501.84 | 520.63 | 539.42 | 558.21 | 577.01 | 595.8 | 614.59 | 633.38 | 652.17 | 670.97 | 689.76 | 708.55 | 727.34 | 746.13 |
| 15.5 | - | - | 246.52 | 265.93 | 285.35 | 304.77 | 324.19 | 343.61 | 363.03 | 382.44 | 401.86 | 421.28 | 440.7 | 460.12 | 479.54 | 498.96 | 518.37 | 537.79 | 557.21 | 576.63 | 596.05 | 615.47 | 634.88 | 654.3 | 673.72 | 693.14 | 712.56 | 731.98 | 751.4 | 770.81 |
| 16 | - | - | 252.27 | 274.31 | 294.36 | 314.4 | 334.45 | 354.49 | 374.54 | 394.58 | 414.63 | 434.67 | 454.72 | 474.76 | 494.81 | 514.89 | 534.9 | 554.94 | 574.99 | 595.03 | 615.08 | 635.12 | 655.17 | 675.21 | 695.26 | 715.3 | 735.35 | 755.39 | 775.44 | 795.48 |
| 16.5 | - | - | - | - | - | - | 344.7 | 365.37 | 386.04 | 406.71 | 427.38 | 448.05 | 468.73 | 489.4 | 510.07 | 530.74 | 551.41 | 572.08 | 592.75 | 613.42 | 634.1 | 654.77 | 675.44 | 696.11 | 716.78 | 737.45 | 758.12 | 778.79 | 799.47 | 820.14 |
| 17 | - | - | - | - | - | - | 354.93 | 376.23 | 397.53 | 418.83 | 440.12 | 461.42 | 482.72 | 504.02 | 525.31 | 546.61 | 567.91 | 589.21 | 610.51 | 631.8 | 653.1 | 674.4 | 695.7 | 716.99 | 738.29 | 759.59 | 780.89 | 802.18 | 823.48 | 844.78 |
| 17.5 | - | - | - | - | - | - | 365.16 | 387.08 | 409 | 430.93 | 452.85 | 474.78 | 496.7 | 518.63 | 540.55 | 562.47 | 584.4 | 606.32 | 628.25 | 650.17 | 672.09 | 694.02 | 715.94 | 737.87 | 759.79 | 781.71 | 803.64 | 825.56 | 874.49 | 869.41 |
| 18 | - | - | - | - | - | - | 375.37 | 397.92 | 420.47 | 443.02 | 465.57 | 488.12 | 510.67 | 533.22 | 555.77 | 578.32 | 600.87 | 623.42 | 645.97 | 668.52 | 691.07 | 713.62 | 736.18 | 758.73 | 781.28 | 803.83 | 826.38 | 848.93 | 871.48 | 894.03 |
| 18.5 | - | - | - | - | - | - | 385.75 | 408.74 | 431.92 | 455.1 | 478.27 | 501.45 | 524.63 | 547.8 | 570.98 | 594.16 | 617.34 | 640.51 | 663.69 | 686.87 | 710.04 | 733.22 | 756.4 | 779.57 | 802.75 | 825.93 | 849.1 | 872.28 | 895.46 | 918.63 |
| 19 | - | - | - | - | - | - | 395.75 | 419.56 | 443.36 | 467.16 | 490.97 | 514.77 | 538.57 | 562.38 | 586.18 | 609.98 | 633.79 | 657.59 | 681.39 | 705.2 | 729 | 752.8 | 776.61 | 800.41 | 824.21 | 848.02 | 871.82 | 895.62 | 919.43 | 943.23 |
| 19.5 | - | - | - | - | - | - | 405.93 | 430.36 | 454.79 | 479.22 | 503.65 | 528.08 | 552.51 | 576.93 | 601.36 | 625.79 | 650.22 | 674.65 | 699.08 | 723.51 | 747.94 | 772.37 | 796.8 | 821.23 | 845.66 | 870.09 | 894.52 | 918.95 | 943.38 | 967.81 |
| 20 | - | - | - | - | - | - | 416.09 | 441.14 | 466.2 | 491.26 | 516.31 | 541.37 | 566.43 | 591.48 | 616.54 | 641.59 | 666.65 | 691.71 | 716.76 | 741.82 | 766.87 | 791.93 | 816.99 | 842.04 | 867.1 | 892.15 | 917.21 | 942.27 | 967.32 | 992.38 |
| 20.5 | - | - | - | - | - | - | - | - | 477.6 | 503.29 | 528.97 | 554.65 | 580.33 | 606.02 | 361.7 | 657.38 | 683.06 | 708.75 | 734.43 | 760.11 | 785.79 | 811.48 | 837.16 | 862.84 | 888.52 | 914.21 | 939.89 | 965.57 | 991.25 | 1016.94 |
| 21 | - | - | - | - | - | - | - | - | 488.99 | 515.3 | 541.61 | 567.92 | 594.23 | 620.54 | 646.85 | 673.13 | 699.46 | 725.77 | 752.08 | 778.39 | 804.7 | 831.01 | 857.32 | 883.63 | 909.94 | 936.24 | 962.55 | 988.86 | 1015.17 | 1041.48 |
| 21.5 | - | - | - | - | - | - | - | - | 500.37 | 527.31 | 554.24 | 581.18 | 608.11 | 635.05 | 661.98 | 688.92 | 715.85 | 742.79 | 769.72 | 796.66 | 823.59 | 850.53 | 877.46 | 904.4 | 931.34 | 958.27 | 985.21 | 1012.14 | 1039.08 | 1066.01 |
| 22 | - | - | - | - | - | - | - | - | 511.74 | 539.3 | 566.86 | 594.42 | 621.98 | 649.54 | 677.11 | 704.67 | 732.23 | 759.79 | 787.35 | 814.91 | 842.48 | 870.04 | 897.6 | 925.16 | 952.72 | 980.28 | 1007.85 | 1035.41 | 1062.97 | 1090.53 |
| 22.5 | - | - | - | - | - | - | - | - | 523.09 | 551.28 | 579.47 | 607.65 | 635.84 | 664.03 | 692.22 | 720.41 | 748.59 | 776.78 | 804.97 | 833.16 | 861.35 | 889.53 | 917.72 | 945.91 | 974.1 | 1002.29 | 1030.47 | 1058.66 | 1086.85 | 1115.04 |
| 23 | - | - | - | - | - | - | - | - | 534.43 | 563.24 | 592.06 | 620.87 | 649.69 | 678.5 | 707.32 | 736.13 | 764.95 | 793.76 | 822.57 | 851.39 | 880.2 | 909.02 | 937.83 | 966.65 | 995.46 | 1024.28 | 1053.09 | 1081.9 | 1110.72 | 1139.53 |
| 23.5 | - | - | - | - | - | - | - | - | 545.76 | 575.2 | 604.64 | 634.08 | 663.52 | 692.96 | 722.4 | 751.84 | 781.28 | 810.73 | 840.17 | 869.61 | 899.05 | 928.49 | 957.93 | 987.37 | 1016.81 | 1046.25 | 1075.69 | 1105.13 | 1134.58 | 1164.02 |
| 24 | - | - | - | - | - | - | - | - | 557.07 | 587.14 | 617.21 | 647.28 | 677.34 | 707.41 | 737.48 | 767.54 | 797.61 | 827.68 | 857.75 | 887.81 | 917.88 | 947.95 | 978.02 | 1008.08 | 1038.15 | 1068.22 | 1098.29 | 1128.35 | 1158.42 | 1188.49 |
| 24.5 | - | - | - | - | - | - | - | - | 568.38 | 599.07 | 629.76 | 660.46 | 691.15 | 721.85 | 752.54 | 783.23 | 813.93 | 844.62 | 875.31 | 906.01 | 936.7 | 967.4 | 998.09 | 1028.78 | 1059.48 | 1090.17 | 1120.86 | 1151.56 | 1182.25 | 1212.95 |
| 25 | - | - | - | - | - | - | - | - | 579.67 | 610.99 | 642.31 | 673.63 | 704.95 | 736.27 | 767.59 | 798.81 | 830.23 | 861.55 | 892.87 | 924.19 | 955.51 | 986.83 | 1018.15 | 1049.47 | 1080.79 | 1112.11 | 1143.43 | 1174.75 | 1206.07 | 1237.39 |

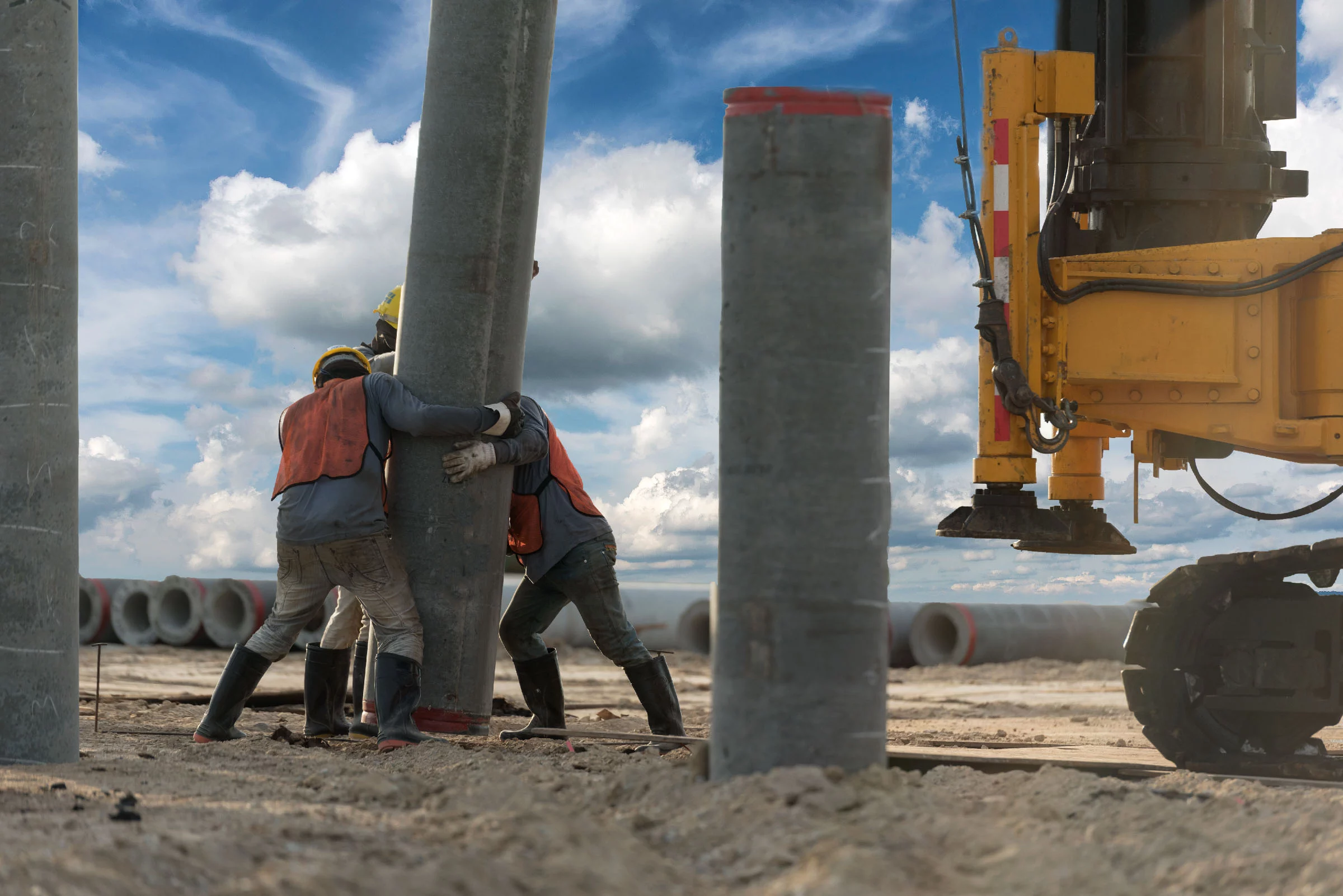

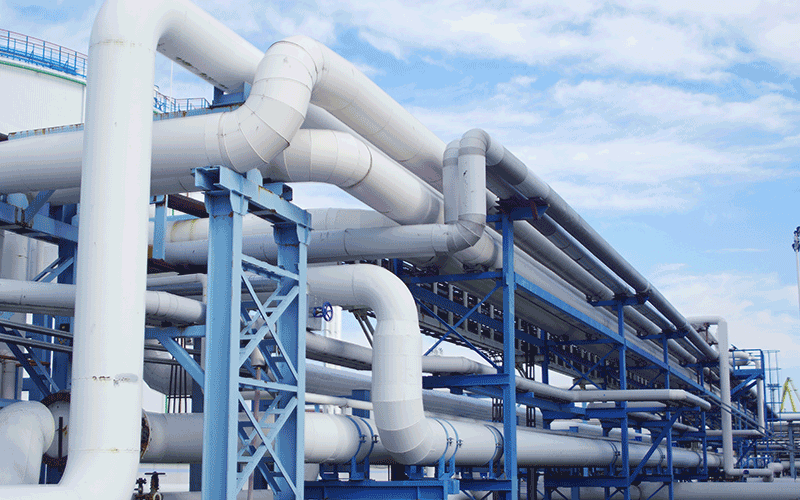

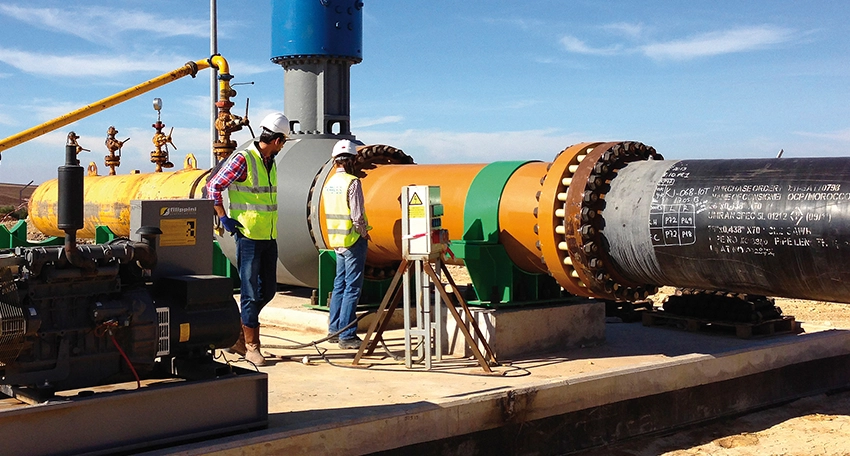

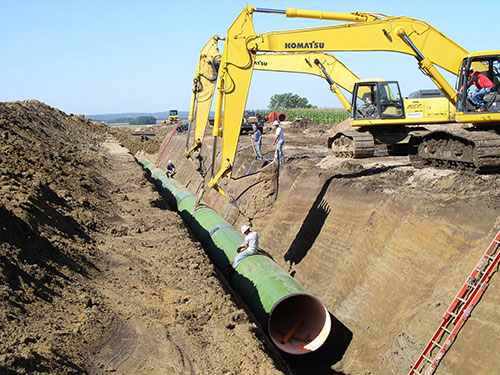

Product Applications
