Carbon Steel Seamless Pipes and Tubes
A Seamless Steel Pipe is made out of a solid round steel billet which is heated and pushed over a form until the steel is shaped into a hollow tube. The seamless pipe is then finished to dimensional and wall thickness specification.
| Product Range | Carbon Steel Seamless Pipes & Tubes |
|---|---|
| OD | 21.30 MM to 508 MM or (½" to 20"). |
| Thickness | 2.77 MM to 40 MM |
| Specification | ASTM A 106, Gr. B/ ASTM A53, Gr. B/API 5L, Gr. B. |
Size & Thickness
| SIZE(N.B - Nominal Bore) | OD (MM) – Outer Dia | Thk. (MM) | KG/Mtr. | |
|---|---|---|---|---|
| ½" | 15 X 40/STD | 21.3 | 2.77 | 1.27 |
| 15X 80/XS | 21.3 | 3.73 | 1.62 | |
| 15 X 160 | 21.3 | 4.78 | 1.95 | |
| ¾" | 20 x 40/STD | 26.7 | 2.87 | 1.69 |
| 20 x 80/XS | 26.7 | 3.91 | 2.2 | |
| 20 x 160 | 26.7 | 5.56 | 2.9 | |
| 1" | 25 x 40/STD | 33.4 | 3.38 | 2.5 |
| 25 x 80/XS | 33.4 | 4.55 | 3.24 | |
| 25 x 160 | 33.4 | 6.35 | 4.24 | |
| 1¼" | 32 x 40/STD | 42.2 | 3.56 | 3.39 |
| 32 x 80/XS | 42.2 | 4.85 | 4.47 | |
| 32 x 160 | 42.2 | 6.35 | 5.61 | |
| 1½" | 40 x 40/STD | 48.3 | 3.68 | 4.05 |
| 40 x 80/XS | 48.3 | 5.08 | 5.41 | |
| 40 x 160 | 48.3 | 7.14 | 7.25 | |
| 2" | 50 x 40/STD | 60.3 | 3.91 | 5.44 |
| 50 x 80/XS | 60.3 | 5.54 | 7.48 | |
| 50 x 160 | 60.3 | 8.74 | 11.11 | |
| 2½" | 65 x 40/STD | 73 | 5.16 | 8.63 |
| 65 x 80/XS | 73 | 7.01 | 11.41 | |
| 65 x 160 | 73 | 9.53 | 14.92 | |
| 3" | 80 x 40/STD | 88.9 | 5.49 | 11.29 |
| 80 x 80/XS | 88.9 | 7.62 | 15.27 | |
| 80 x 160 | 88.9 | 11.13 | 21.35 | |
| 4" | 100 x 40/STD | 114.3 | 6.02 | 16.08 |
| 100 x 80/XS | 114.3 | 8.56 | 22.32 | |
| 100 x 120 | 114.3 | 11.13 | 28.32 | |
| 100 x 160 | 114.3 | 13.49 | 33.54 | |
| 5" | 125 x 40/STD | 141.3 | 6.55 | 21.77 |
| 125 x 80/XS | 141.3 | 9.53 | 30.97 | |
| 125 x 120 | 141.3 | 12.7 | 40.28 | |
| 6" | 150 x 40/STD | 168.3 | 7.11 | 28.26 |
| 150 x 80/XS | 168.3 | 10.97 | 42.56 | |
| 150 x 120 | 168.3 | 14.27 | 54.21 | |
| 8" | 200 x 20 | 219.1 | 6.35 | 33.32 |
| 200 x 30 | 219.1 | 7.04 | 36.82 | |
| 200 x 40/STD | 219.1 | 8.18 | 42.55 | |
| 200 x 60 | 219.1 | 10.31 | 53.09 | |
| 200 x 80/XS | 219.1 | 12.7 | 64.64 | |
| 200 x 100 | 219.1 | 15.09 | 75.92 | |
| 200 x 120 | 219.1 | 18.26 | 90.44 | |
| 200 x 140 | 219.1 | 20.62 | 100.93 | |
| 200 x 160 | 219.1 | 23.01 | 111.27 | |
| 10" | 250 NS | 273 | 7.1 | 46.56 |
| 250 x 30 | 273 | 7.8 | 51.01 | |
| 250 x 40/STD | 273 | 9.27 | 60.29 | |
| 250 x 60 | 273 | 12.7 | 81.53 | |
| 250 x 80/XS | 273 | 15.09 | 95.98 | |
| 250 x 100 | 273 | 18.26 | 114.71 | |
| 250 x 120 | 273 | 21.44 | 133.01 | |
| 250 x 140/XXS | 273 | 25.4 | 155.1 | |
| 250 x 160 | 273 | 28.58 | 172.27 | |
| 250 NS | 273 | 32 | 190.19 | |
| 12" | 300 NS | 323.8 | 7.1 | 55.45 |
| 300 x 30 | 323.8 | 8.38 | 65.19 | |
| 300 STD | 323.8 | 9.53 | 73.86 | |
| 300 x 40 | 323.8 | 10.31 | 79.71 | |
| 300 XS | 323.8 | 12.7 | 97.44 | |
| 300 x 60 | 323.8 | 14.27 | 108.93 | |
| 300 x 80 | 323.8 | 17.48 | 132.05 | |
| 300 x 100 | 323.8 | 21.44 | 159.87 | |
| 300 x 120 | 323.8 | 25.4 | 186.92 | |
| 300 x 140/XXS | 323.8 | 28.58 | 208.08 | |
| 300 x 160 | 323.8 | 33.32 | 238.69 | |
| 14" | 355 x 30/STD | 355.6 | 9.53 | 81.33 |
| 355 x 40 | 355.6 | 11.13 | 94.55 | |
| 355 XS | 355.6 | 12.7 | 107.4 | |
| 355 x 60 | 355.6 | 15.09 | 126.72 | |
| 355 x 80 | 355.6 | 19.05 | 158.11 | |
| 355 x 100 | 355.6 | 23.83 | 194.98 | |
| 355 x 120 | 355.6 | 27.79 | 224.66 | |
| 355 x 140 | 355.6 | 31.75 | 253.58 | |
| 355 NS | 355.6 | 35.01 | 276.8 | |
| 355X160 (Non-IBR) | 355.6 | 35.71 | 281.72 | |
| 16" | 400 x 30/STD | 406.4 | 9.53 | 93.27 |
| 400 x 40/XS | 406.4 | 12.7 | 123.31 | |
| 400 x 80 | 406.4 | 21.44 | 203.54 | |
| 18" | 450 x 30 | 457 | 11.13 | 122.38 |
| 450 x 40 | 457 | 14.27 | 155.81 | |
| 450 x 80 | 457 | 23.83 | 254.57 | |
| 20" | 500 x 30/XS | 508 | 12.7 | 155.13 |
| 500 x 40 | 508 | 15.09 | 183.43 | |
| 500 x 80 | 508 | 26.19 | 311.19 |

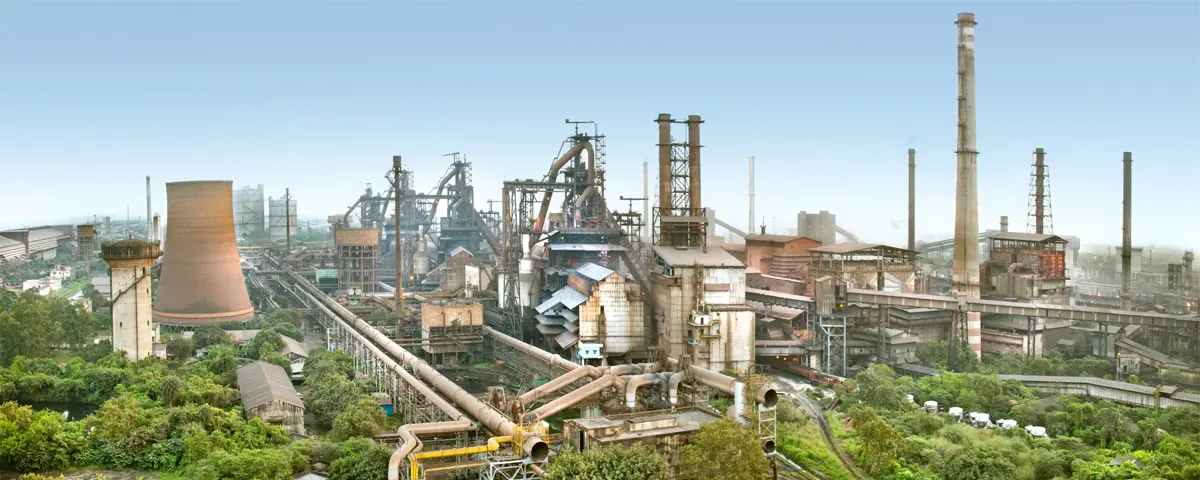

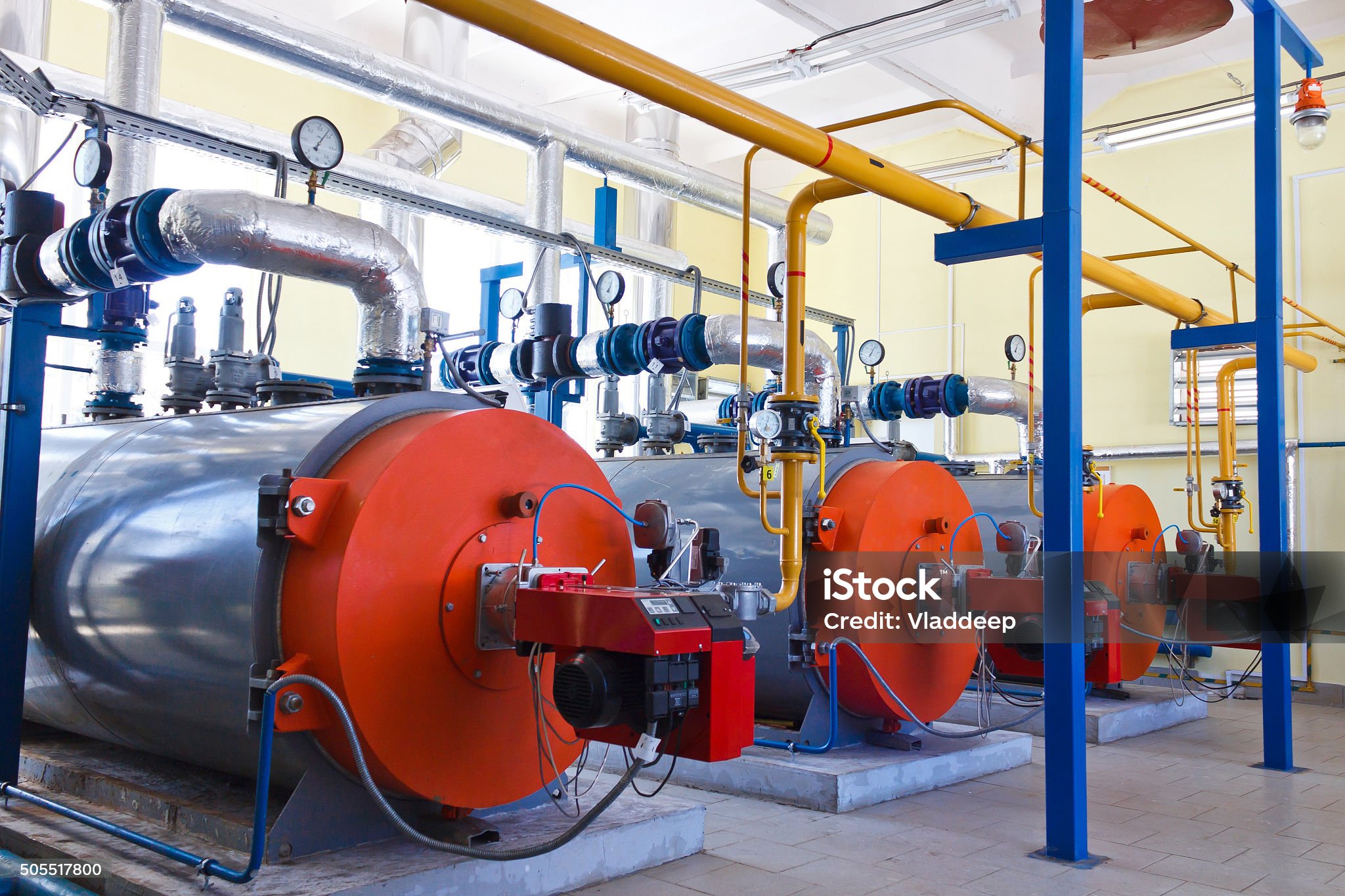

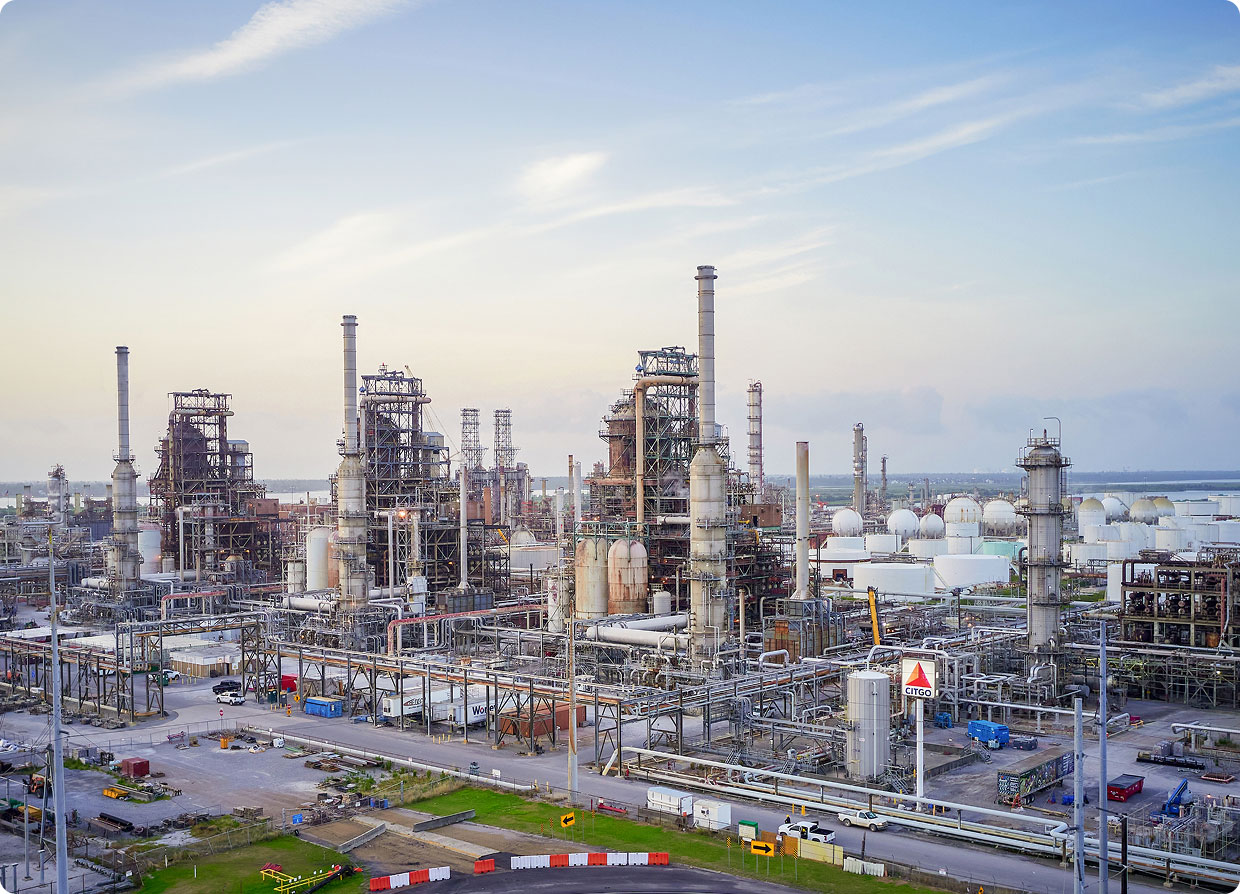

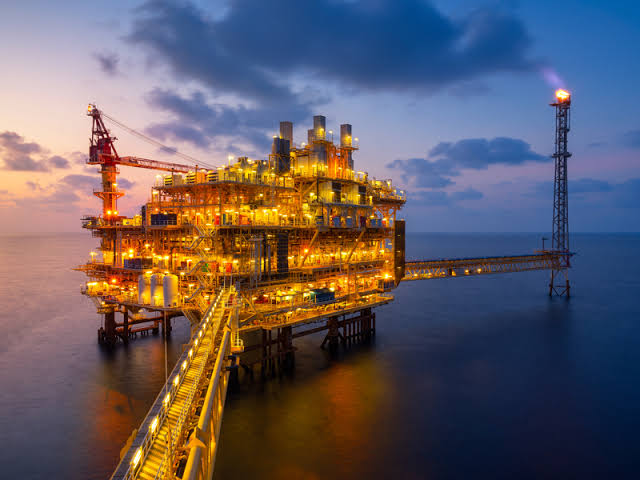

Product Applications
